100w 200w 12v portable Solar Panel Flexible 16V 800W plate CELLS Monocrystalline silicon

Packing List

100w solar panel = 1pcs 100w solar panel = one packing

200w solar panel = 2pcs 100w solar panel= one packing

300w solar panel =3pcs 100w solar panel= two packing

400w solar panel =4pcs 100w solar panel= two packing

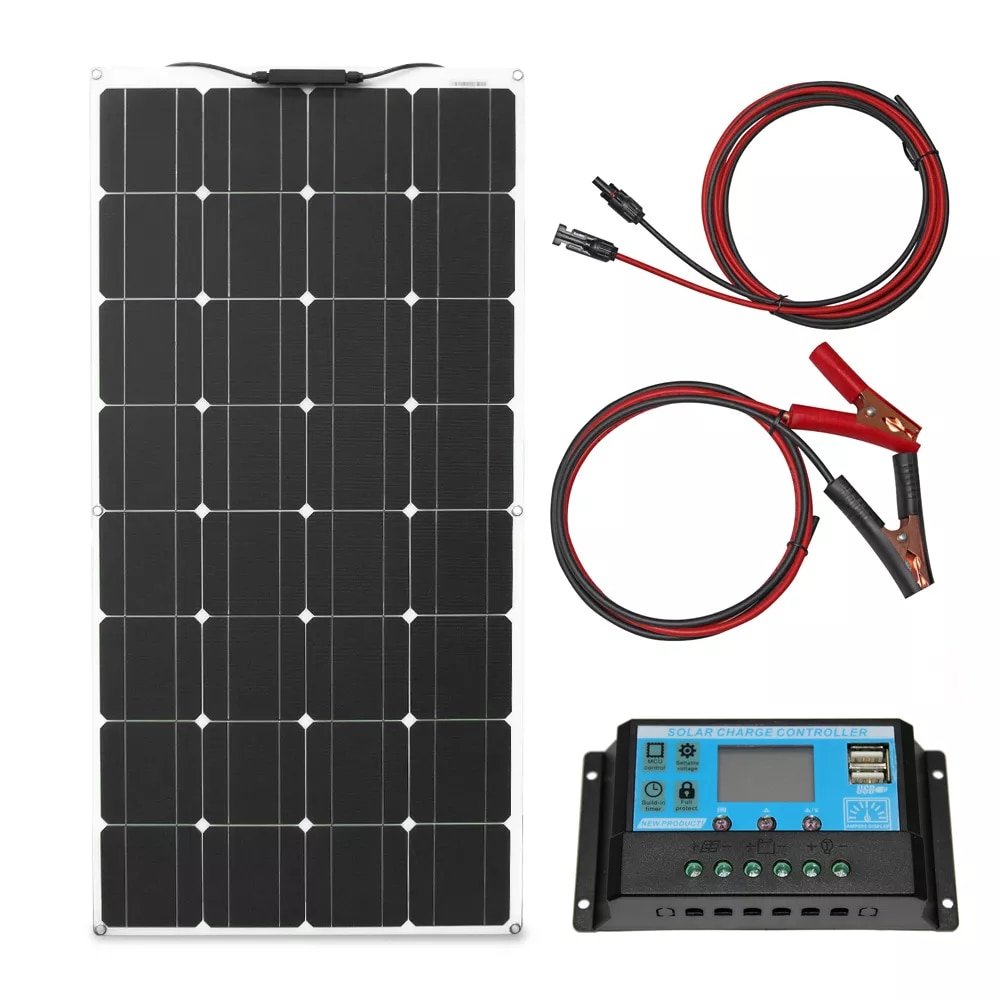

100w solar panel system packing list

1pcs 100w flexible solar panel
1pcs 10A 12V/24V solar panel controller
1set cable with battery clips
1set cable with PV solar connector

200w solar panel system packing list

2pcs 100w flexible solar panel
1pcs 20A 12V/24V solar panel controller
1set cable with battery clips
1set cable with PV solar connector
1pair 2 in 1 solar adapter

Different with traditional solar panels which are rigid and often enclosed in tempered glass, the 100W Flexible Solar Panel is anything but traditional. The 100W Flexible Solar Panel is thin and capable of flexing up to 30 degrees that can easily be installed on curved surfaces, high efficiency up to 21% with small size for big power output, light weight just 1.9kg(±0.1kg) only a quarter of its traditional 100W glass solar panel. This panel can also be used for various applications, including providing power on a boat, van, golf car, tricycle, tent roof, even though hanged on window to power the lights and other DC applications. The 100W solar panel can charge the 12V or 24V battery or charge the 3.7V, 6V, 9V devices with a regulator.

Advantages

High Efficient
High solar cell efficiency: Monocrystalline 21%

Protection

Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments

Extremely Flexible

This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream

Ultra Lightweight

Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze

Super Thin

Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup

Highly Durable

Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads

Easy to install: Metal holes in the corners of the product for fixing screws and mounting.

Electrical Characteristics

Max Power                                          100W
Max Power voltage                                 16V
Max Power Current                              6.25A
Open Circuit Voltage                            19.2V
Short Circuit Current                            6.68A
Number of cells in Series                  32
Cell size                                                125X125mm
Mechanical Characteristics
Dimension                                            1050X530X2.5mm
Weight                                            1.9kg(±0.1kg)
Cable                                                0.9 meter 2X2.5mm
Thermal Characteristics
Temperature coefficient of Pmax        -0.38%/℃
Temperature coefficient of Voc       -60.5mV/℃
Temperature coefficient of Isc           2.2mA/℃
NOTC                                                47℃+/-2℃
Operating Temperature                        -20℃ – +65℃
