- Brand Name: PEGATAH
- Lens: 0
- Origin: Mainland China
- Sensor Size: 0
- Maximum IR Distance(m): 0
- Model Number: TI-6300W
- Certification: CE
- Display: 4.3inch TFT- LCD,480X272 resolution
- Signal mode: NTSC/PAL (Auto adapt)
- AHD TVI CVI: 72OP/1080P 3MP/4MP/5MP/8MP Test
- UTC control/call OSD menu: Support
- Feature1: On-camera monitor
- Feature2: monitor 4k
- Feature3: cctv tester monitor
- Feature4: cftv monitor

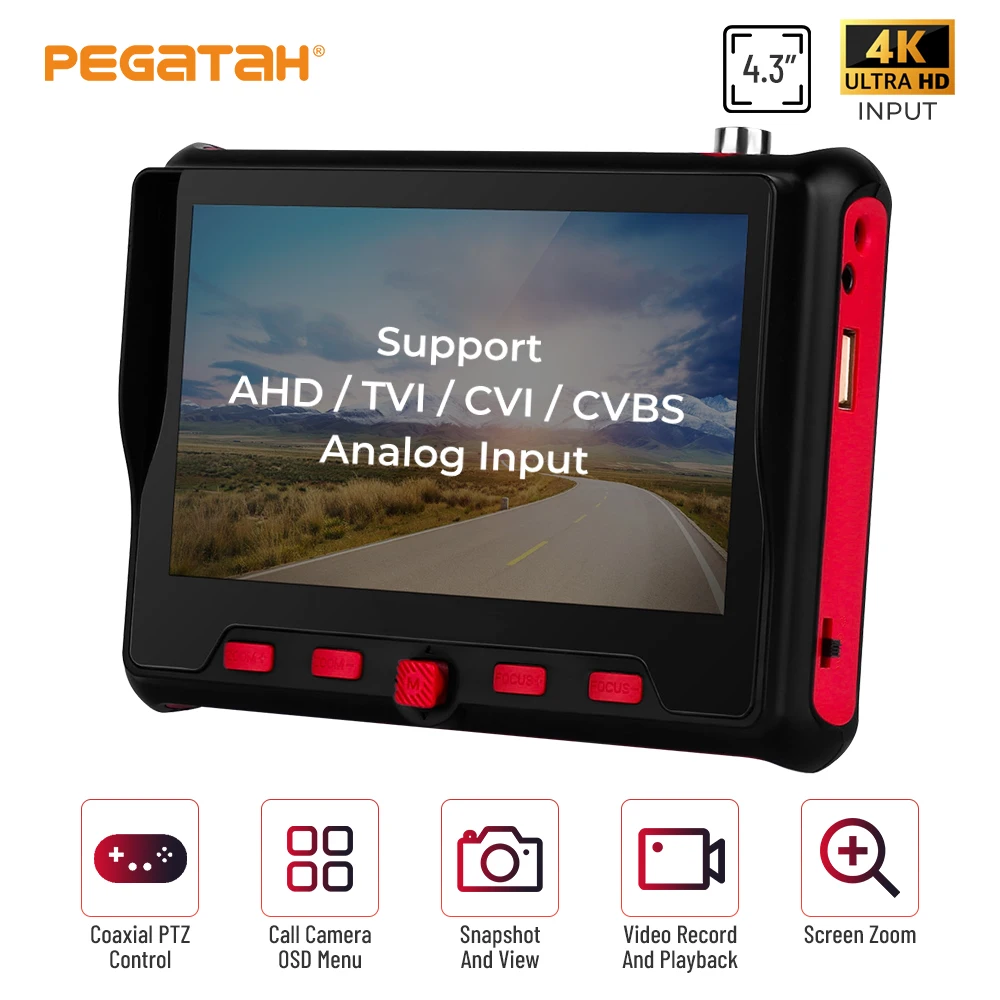

8MP CCTV tester mini monitor 4K camera tester AHD/CVI/TVI CVBS camera test RS485 UTP cable testing Portable cftv monitor
The new HDCCTV Test monitor support “4in1"(AHD/TVI/CVI/CVBS)video format of up to 2MP~8MPresolution. It also supportPTZ control by RS485 and other special features suchas DC12V/USB/5V out put, audion test,UTPcable test,LED lighting etc.lt is designed to bring installer maximum conveniecy duringthe installation.
Product Funtions:
Video input: Compatible with AHD,TVI,CVI,CVBS signalsof up to 2MP~8MPresolution.
●4.3 inch 480 x272 resolution.PAL/NTSC(Auto adapt).
●PTZ control: RS485Baud-:1200~115200bps,compatible with PELCO-D/Pprotocols.
●Camera Power Supply: Power output of DC 12V/1Afor temporarily powering on cameras for angle and zoom adjustment
●USB Power Supply.: USB2.0 interface provides 5V/1A power output
●Audio signal input
●Enhanced UTP cable, with indicator lights. the cable test distance can reach 100-150 meters
●UTC control/call OSD menu
●Coaxial HD test
●AHD tester support 720P25F/30F/1080P/25F/3OF(4MP/5MP/8MP AHD camera tester is optional*)
●TVl tester support 720P25F/30F 1080P25F/30F(3MP/4MP/5MP/8MP TVl camera tester is optional*)
●CVl tester support 720P25F/30F 1080P25F/30F(4MP/5MP/8MP CVl camera tester is optional*)
●LED emergency lighting
●bulit-in 3.7V Lithium polymer battery, 3000mAh
Specification

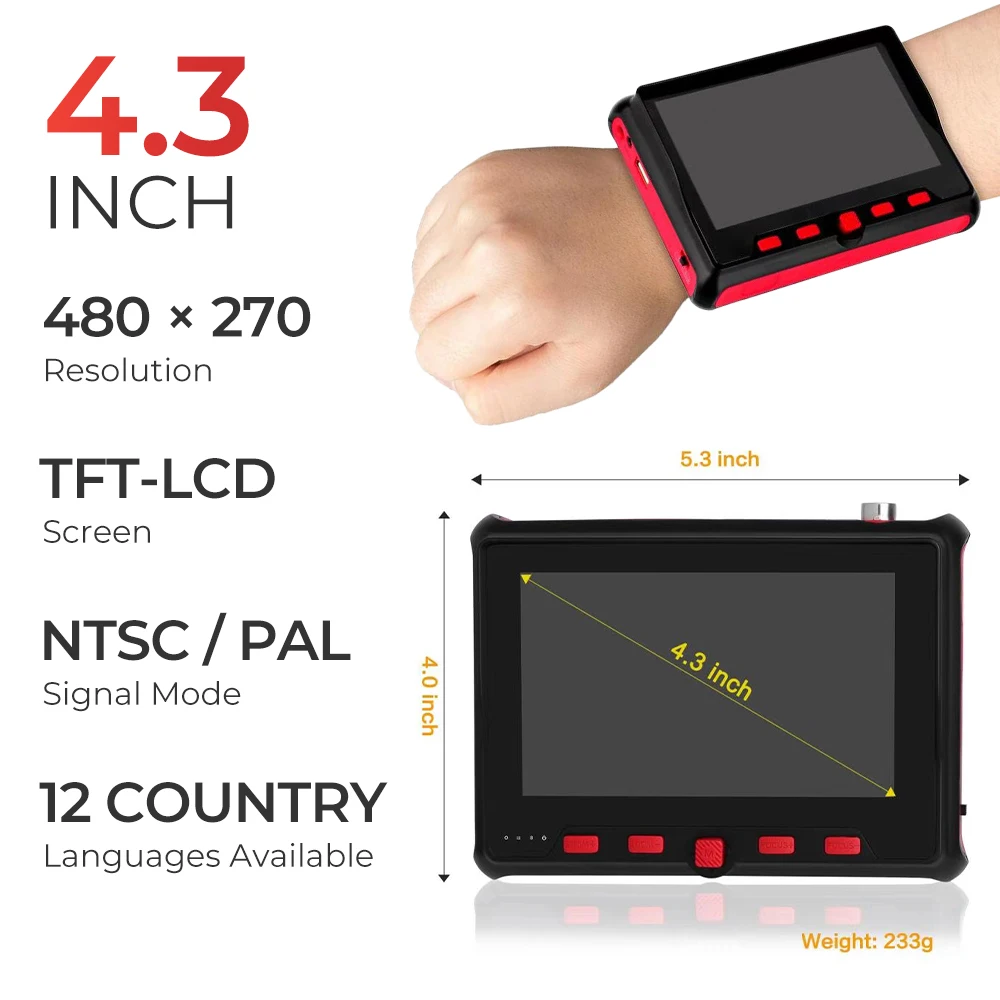

Display:4.3inch TFT- LCD,480X272 resolution
Signal mode:NTSC/PAL (Auto adapt)
Video lN:BNC ( Analog/AHD/TVI/cVl) signal input
VIDEO TEST: CVBS TestAHD TVI cvI 72OP/1080P3MP/4MP/5MP/8MP(*) Test
uTC control/call OSD menu
Audio input test
PTZ Controller：Support RS485,Compatible with protocolsPELco-D/P, Baud Rate 1200~14400bps

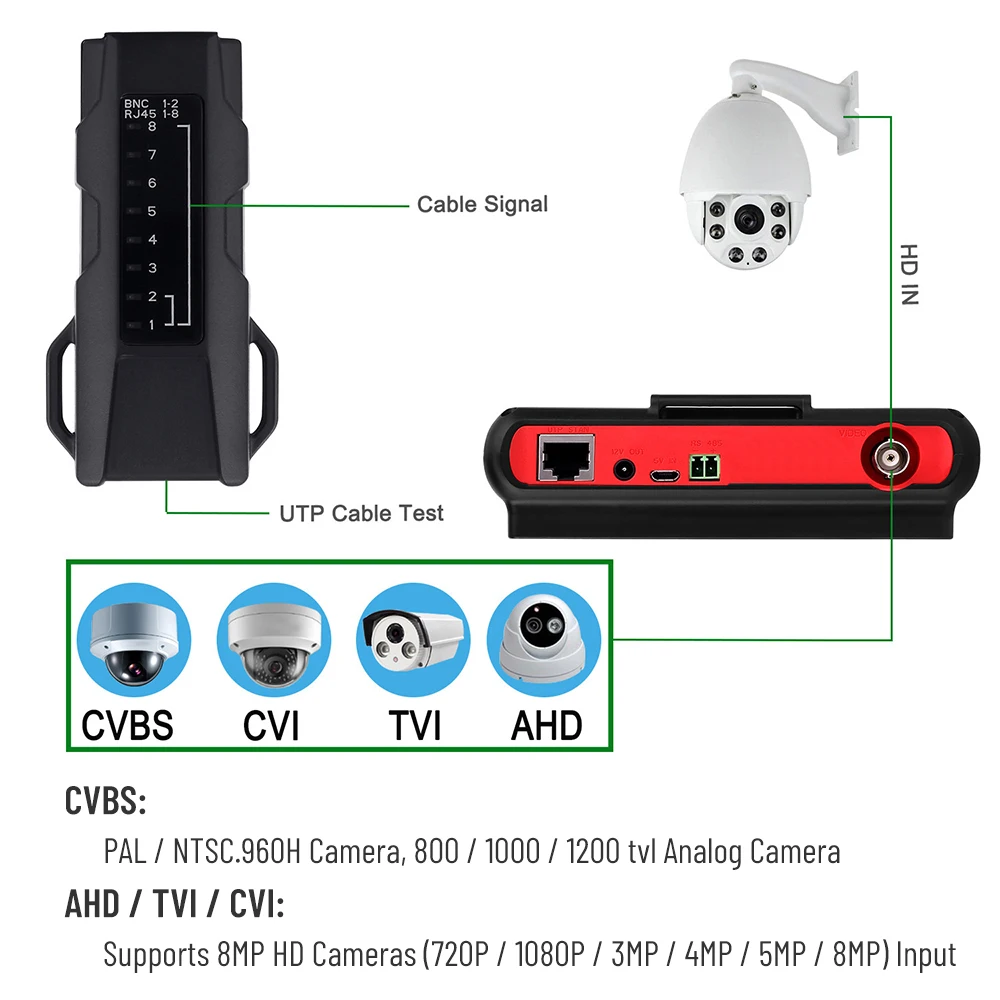

UTP Cable Tester：Enhanced UTPcable, with indicator light, thetest distance can reach 100-150 meters
POWER
DC12V output：DC12V1A power Output
Power Adapter：DC 5V/1Alnput

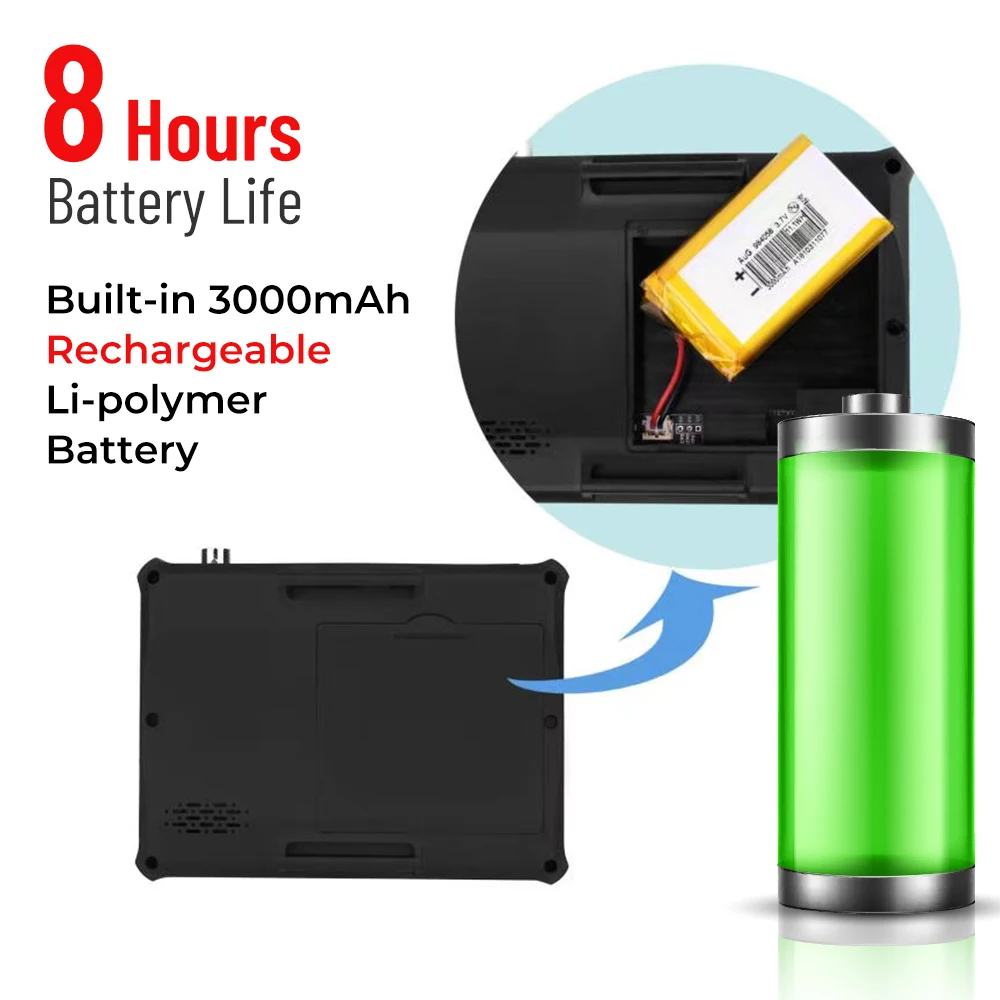

Battery：Built-in 3.7V 3000ma battery
Battery Life：8 hours work after full charge(Withoutsupplyingpower to extemal devices)
Language：12 Languages available
General
Working Temperature：10°C-+50°c
Working Humidity：30% – 90%
Dimension/Weigh：38mmx 103mm x 41mm /0.5kg

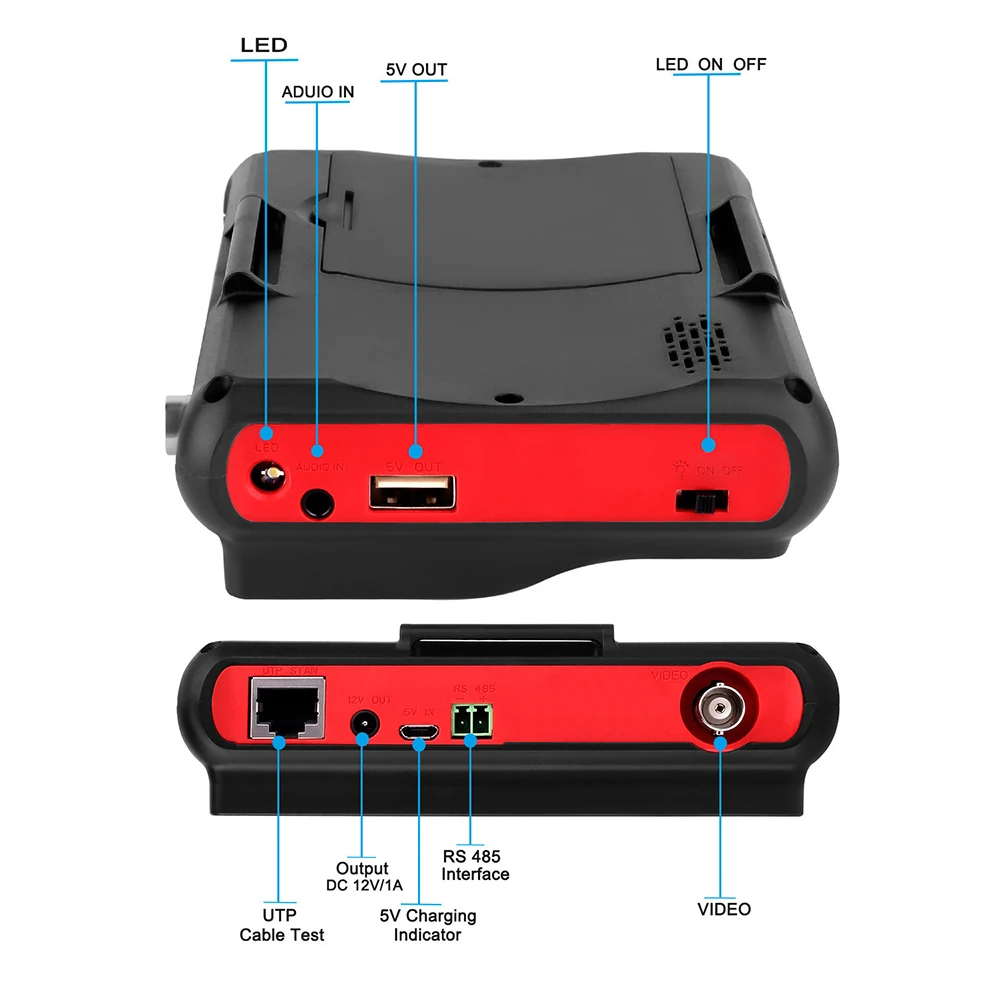

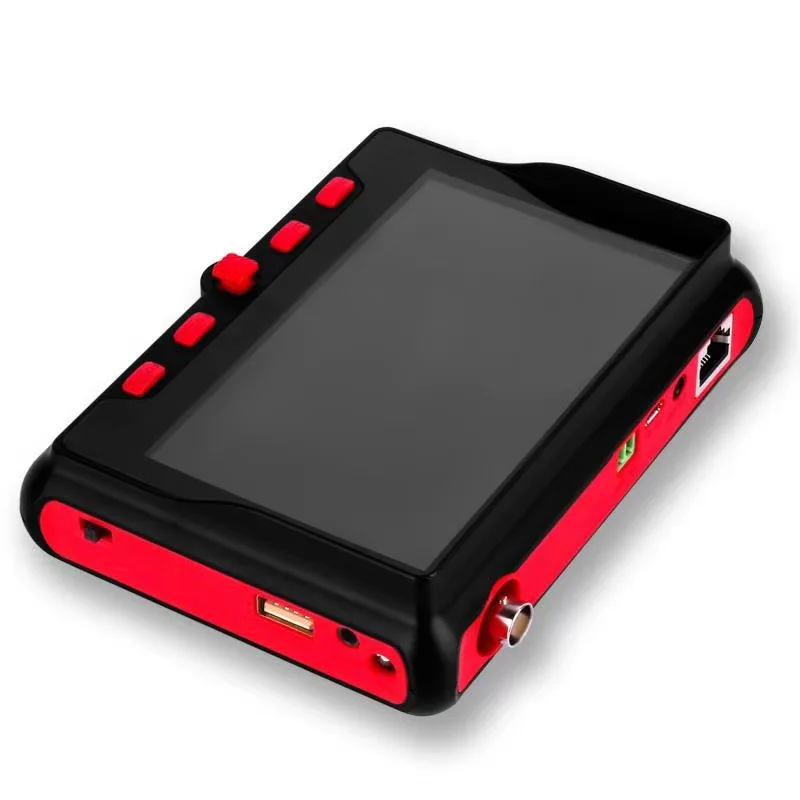

Product details

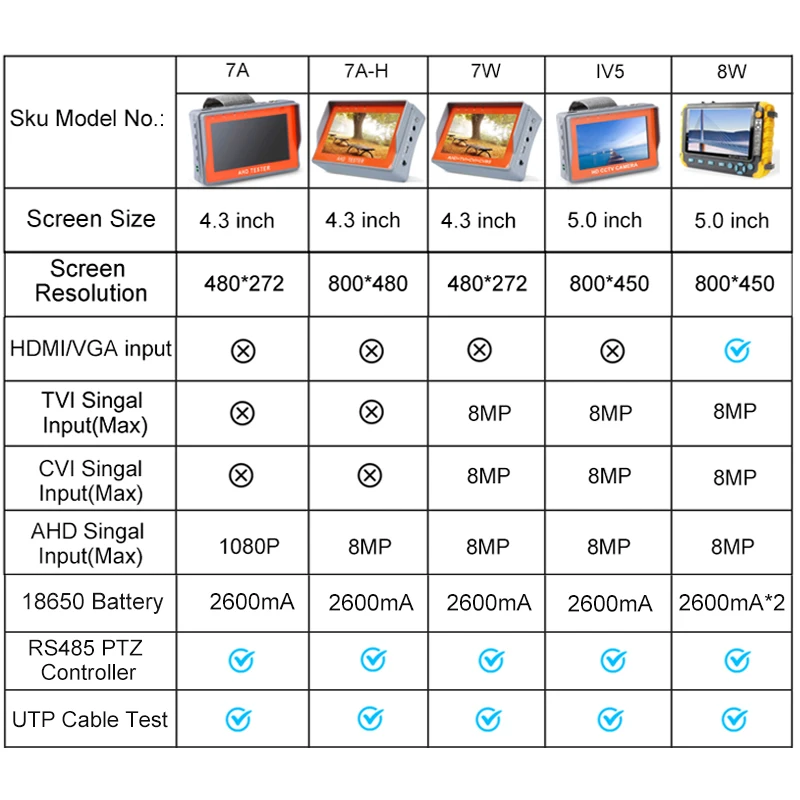

Key Feature comparison

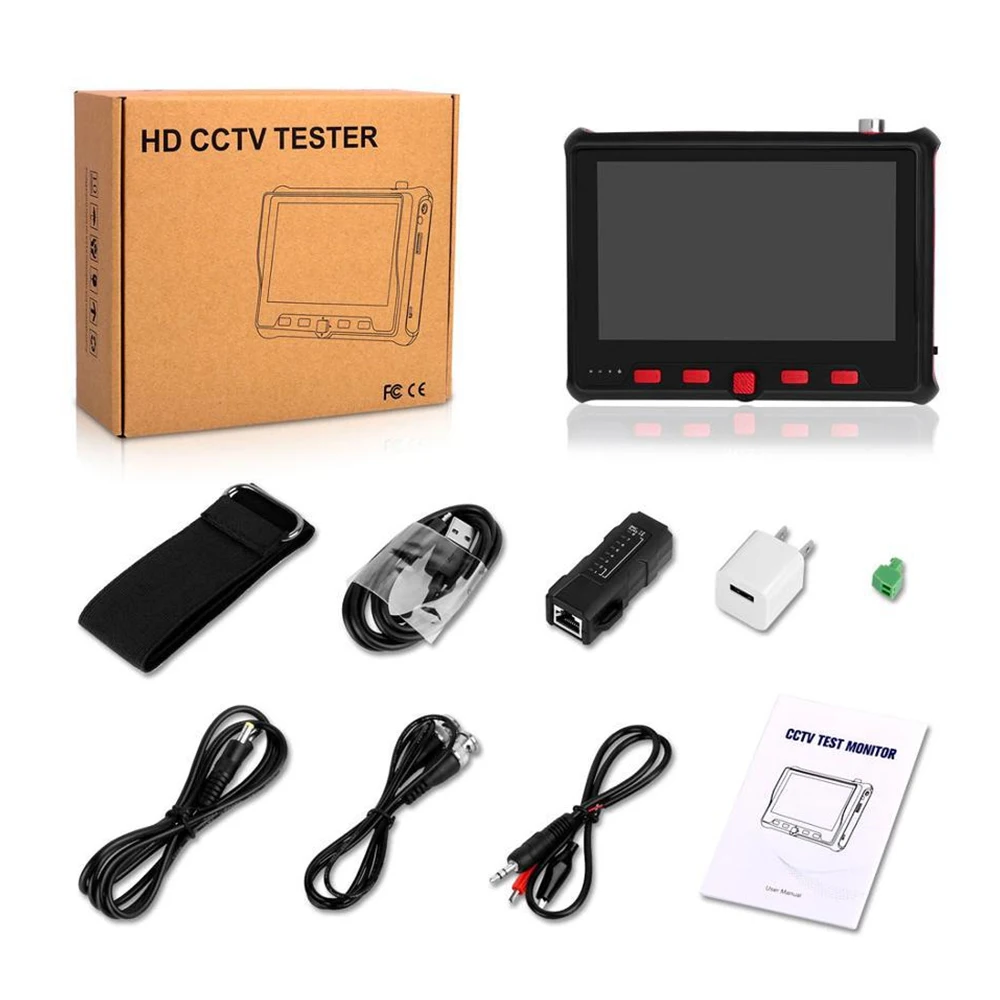

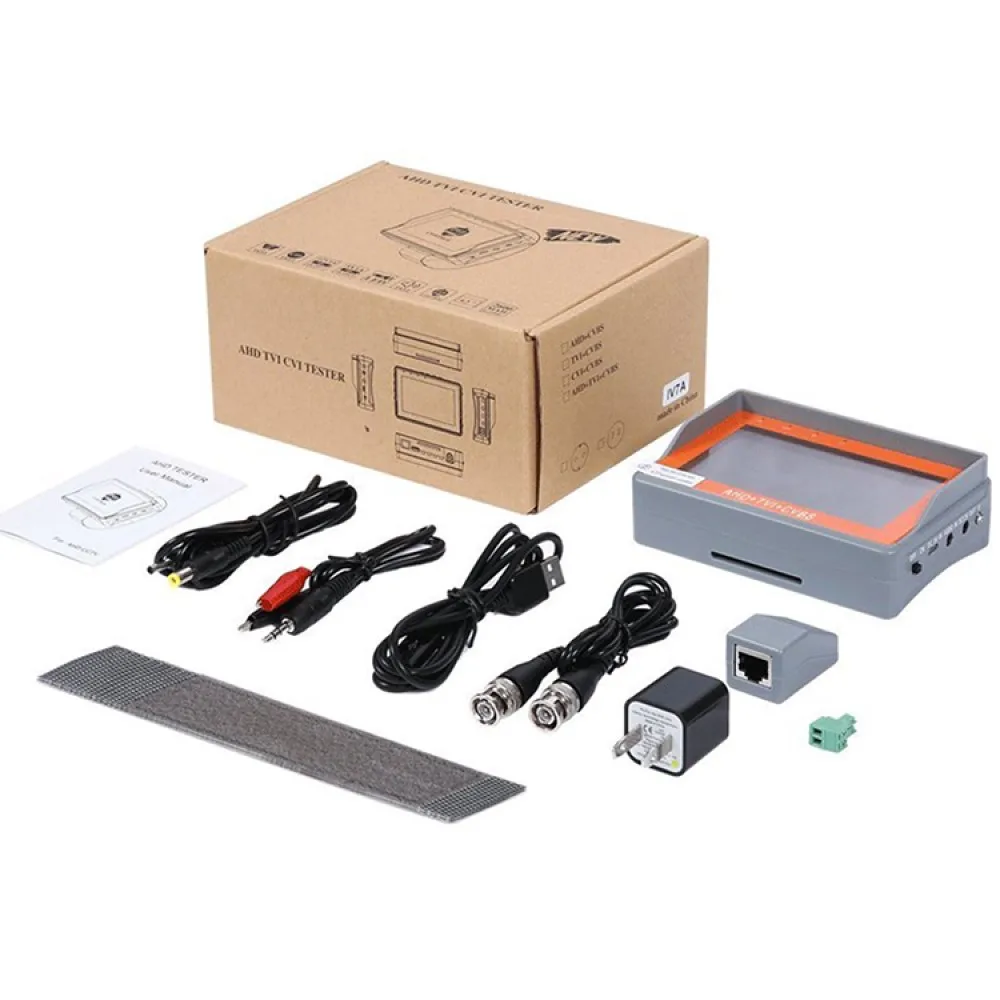

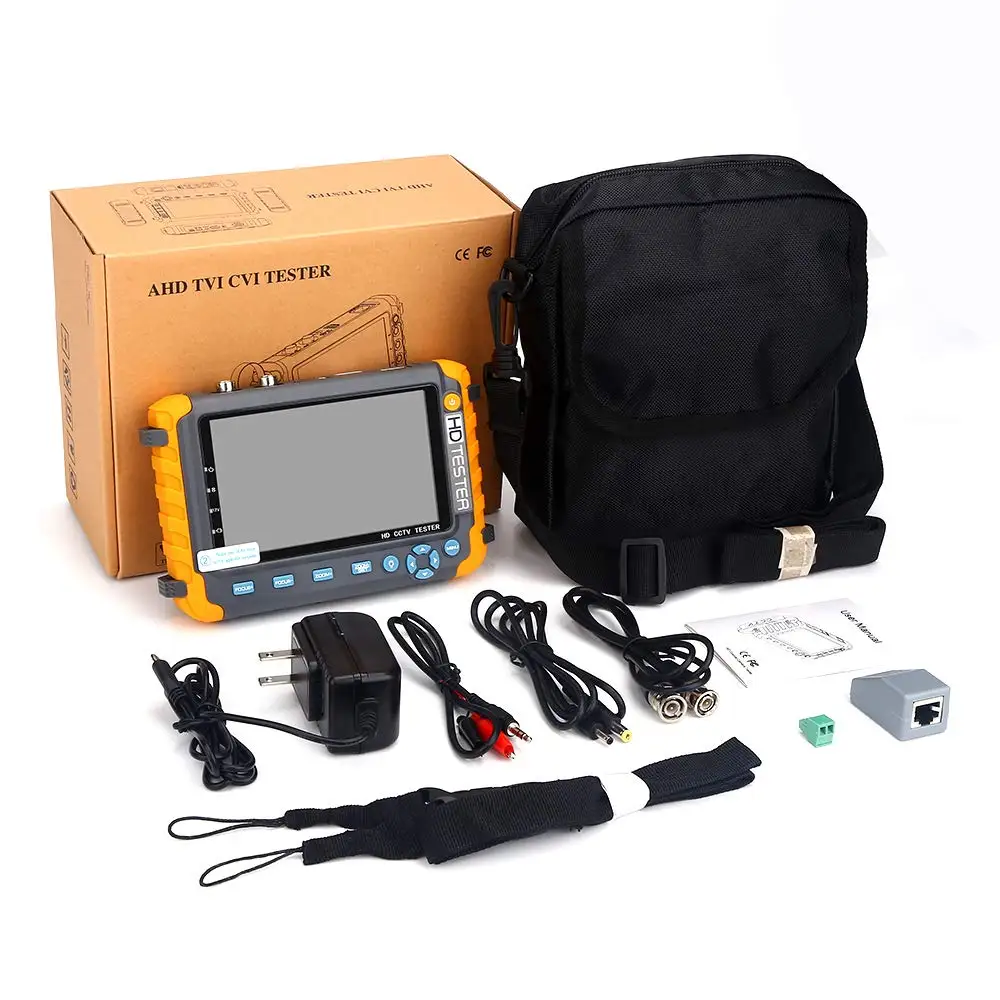

Package
TI-6300W/TI-6800ACT
8W
IV5
