- Brand Name: FangNymph
- Origin: Mainland China
- Model Number: HA075274-01
- Certification: NONE
- Is Smart Device: YES
Description:
Good Protection Performance: The fully sealed design, with an ABS plastic casing, better protects the internal circuitry.
Easy Installation: The controller structure is simple, the box is compact, and wall installation is effortless.
Clear Reading: LCD, clear digital display for easier reading.
Multifunctional: With constant temperature, cooling, high temperature sterilization and other functions.
Applicable Scenario: This is a great winter home helper.
Specification:
Color: As Shown
Material: ABS
Size: Approx.18×12.5x5cm/7.09×4.92×1.97 inch
Power Input: 200-240V ~ (50-60 Hz)
Rated Pulse Voltage: 2.5Kv
485 Current Supply: 60mA
Installation: Wall Mounting
Run: Six Push-Down Buttons on The Front of The Panel
Protection Type: IP41
Protection Level: I
Ambient Temperature: -10-50℃
Temperature Measurement Accuracy: ±2℃
Temperature Display: 0.1℃
Collector Temperature Range: -10 – 220℃
Temperature Measurement Range Of Water Tank Or Pipe: 0-110℃
Input Signal:
1 Piece Collector with PT1000 Temperature Sensing Head ≤500℃ (Silica Gel Wire ≤280℃)
2 Pieces Water Tanks Or Pipelines with NTC10K, B=3950 Temperature Sensing Head ≤135℃ (PVC Wire ≤105℃)
Output Signal:
1 Piece Control Circulating Pump (200W)
1 Piece Control Auxiliary Electric Heater (200W)
Note:
There might be a few color distortions due to different computer resolutions.
There might be a slight error due to different hand measurements.
Package Includes:

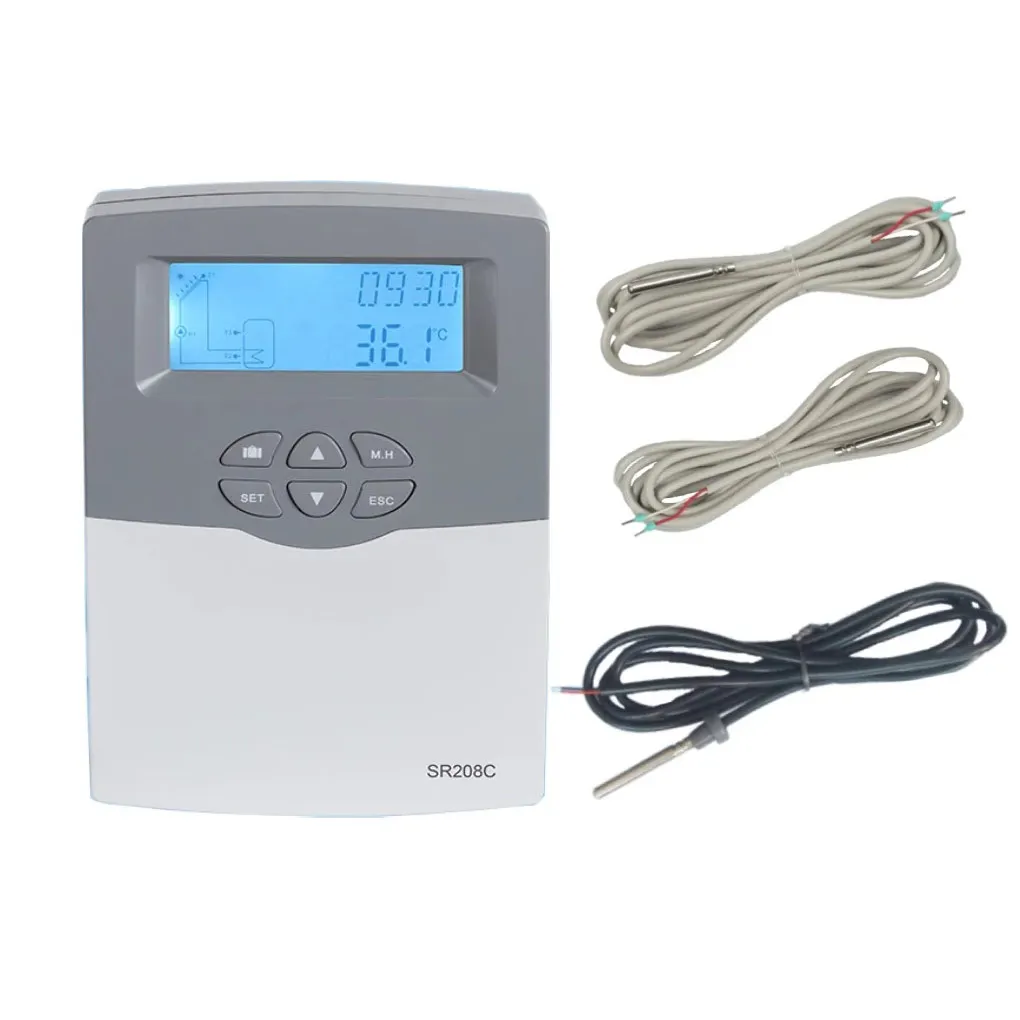

1 Piece Controller (with 1 Piece Manual in English, 1 Piece PT1000 Sensor).
