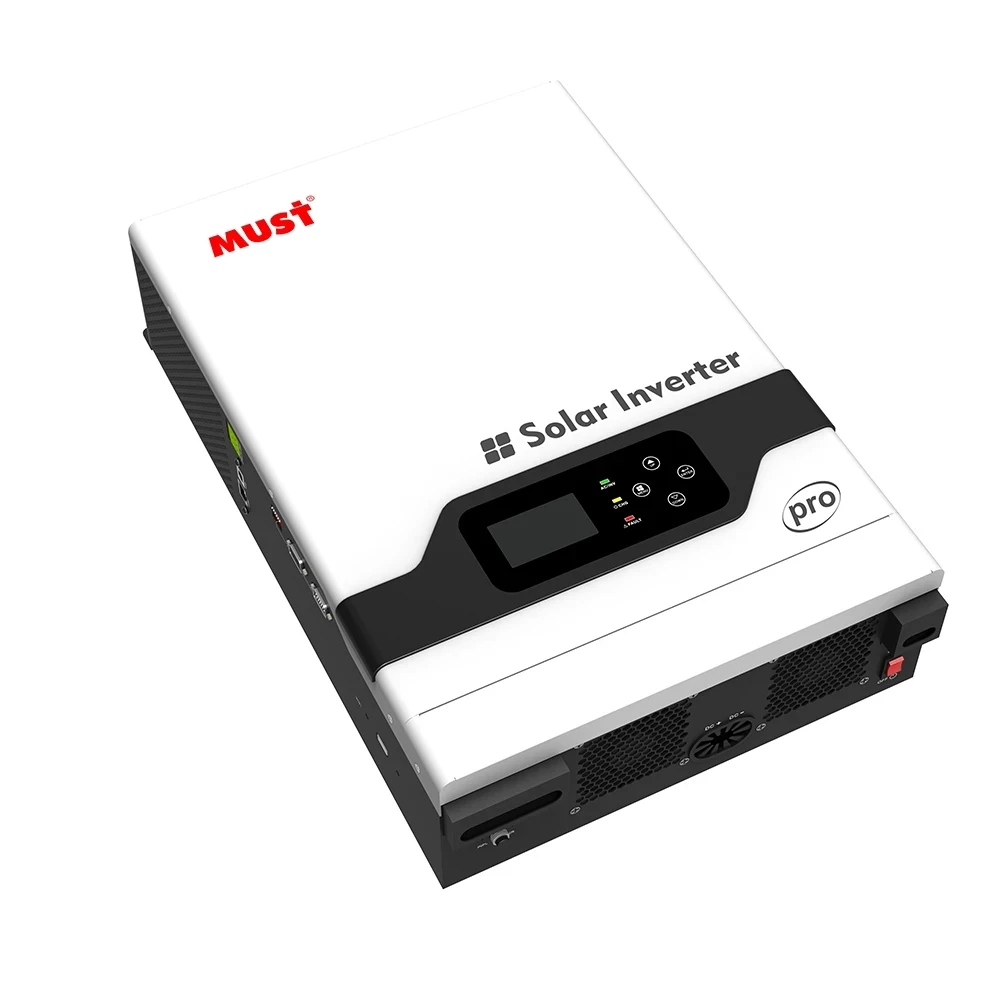

MUST ME PH1800 Pro 5.2KW 48V PV 450V Home MPPT 80A Hybrid Solar Inverter Pure Sine Wave Solar System Support Parallel WIFI Monit

Availability:

20 in stock


$1,549.41$1,648.32

  • Brand Name: must energy
  • Origin: Mainland China
  • Certification: CE,FCC,RoHS
  • Size: 330*488*119 mm
  • Output Frequency: 50Hz/60Hz
  • Output Type: single
  • is_customized: Yes
  • Output Current: Max 23.63A
  • Output Power: 1 – 200KW
  • Weight: 14kg
  • Is Smart Device: YES
  • Model Number: PH18-5248 Pro

MUST PH1800 Series 3KW 5.2KW Pure Sine Wave Home Hybrid Solar Inverter

PH1800 PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PH1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430V, which can help customers make full use of solar energy.

Features:

  • Pure sine wave output

  • Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).

  • MAX PV Array Open Circuit Voltage: 450V

  • Can provide the power to the load without battery

  • Combining solar system, AC utility, and battery power source to supply continuous power

  • Overload, short circuit and Deep discharge protection

  • Cold start function

  • Support USB, RS485 monitoring function

  • WIFI remote monitoring (optional)

  • Compatible to generator

  • Support Parallel (Built-in parallel card)

NOTE:Due to the quality upgrade of the product accessories, you are buying a new appearance, the function is exactly the same

Model

PH18-3024 PRO

PH18-5248 PRO

Nominal Battery System Voltage

24VDC

48VDC

INVERTER OUTPUT

Rated Power

3000VA / 3000W

5200VA / 5200W

Surge Power

6000W

10400W

Waveform

Pure sine wave

AC Voltage Regulation (Batt.Mode)

230VAC±5%(Setting)

Inverter Efficiency(Peak)

90%~93%

Transfer Time

10ms (UPS / VDE4105) 20ms (APL)

AC INPUT

Voltage

230VAC±5%

Selectable Voltage Range

170~280VAC(UPS) / 90~280VAC(APL)

Frequency Range

50Hz/60Hz(Auto sensing)

BATTERY

Normal voltage

24VDC

48VDC

Floating Charge Voltage

27.4VDC

54.8VDC

Overcharge Protection

30VDC

60VDC

SOLAR CHARGER & AC CHARGER

Maximum PV Array Open Circuit Voltage

450VDC

Maximum PV Array Power

5000W

PV Array MPPT Voltage Range

150~430 VDC

Maximum Solar Charge Current

80A

Maximum AC Charge Current

60A

Maximum Charge Current

80A

MECHANICAL SPECIFICATIONS

Machine Dimensions (W*H*D)(mm)

289*414*124.5

330*488*119

Package Dimensions (W*H*D)(mm)

393*488*251

396*638*241

Net Weight(kg)

8

14

Gross Weight(kg)

9.5

16.4

OTHER

Humidity

5% to 95% Relative humidity (Non-condensing)

Operating Temperature

-10℃~50℃

Storage Temperature

-15℃~60℃

FAQ

1. How to choose an inverter that suits you?

Please confirm your loads, battery capacity and voltage, solar panel string capacity; you can contact us for professional help

2. Who we are?

We are a MUST source manufacturer, selling original MUST products

3. What Is an Inverter Charger with MPPT?

It is an Integrated unit with MPPT solar charge controller, pure sine wave inverter, and battery charger in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances. PH1800 Pro 5.2KW Solar Inverter Charger combines solar charging, AC/generator battery charging, and battery inverting into one convenient solution to take your off-grid system to the hybrid level.

4. What’s type of this inverter?

PH1800 PRO is a ON-OFF-GRID solar inverter, it has GRID-TIE function. You can sell your solar power to the utility.

5. Can I use the inverter with a 48V system?

Yes.

6. How many solar panels can I connect to this inverter?

For example Vmp 38.6Vdc, Imp 11.02A, Voc 45.8Vdc, Isc 11.81A 425W solar panel, you can connect 12pcs of it to our inverter, 6S2P

7. How do I hook up the Inverter? What size cable should I use, and is it included?

When connecting the inverter to the battery and solar panels, please read all of the instructions and cautions in the manual before beginning the installation. The minimum recommended wiring gauge for battery wiring is2*4AWG(for a 200AH battery), PV wiring is 10AWG, AC input and out wiring is 8AWG.

Incorrect or improper connection points and corroded wires can cause great heat to melt the wire insulation, burning surrounding materials, and even cause fire, so ensure that the connection is tightened

8. Can I use the solar inverter without batteries when using PV or Mains?

Yes, our PV1800/PH1800 PRO series can run without battery. You can have a look at our store

9. Does this solar inverter limit PV current? I’m not getting my full power?

When setting up the solar inverter, ensure Program 11 (PV Charging Current) and Program 13 (Maximum Charge Current) are set to their maximum to ensure no PV current clipping.

10. Can I use theWIFI Module to monitor the inverter from my phone? Which WIFI Module should I buy?

Yes. The WIFI-PLUG is compatible with this inverter.Please choose your inverter with WIFI-PLUG to order

11. Warranty Policy

The MUST products we sell are covered by a one-year warranty. In case of product failure, contact our after-sales engineers for help in the first instance. If necessary, we will send you free parts (within the warranty period).

Wrong way of operation may cause the product to burn out, such as not following the standard installation when connecting cables. Please read the manual carefully when installing.

12. Shipping Policy

Normally we send the goods the second days after payments. We use air cargo to send the goods. Aliexpress Standard Shipping arrive at 15-20days(EU country arrive at 7-10 days), DHL/FedEx/UPS arrive at 7-10 days, Cainiao Heavy Line arrive at 20 days(EU 15-20 Days).
