- Brand Name: PEGATAH
- Lens: other
- Origin: Mainland China
- Sensor Size: other
- Maximum IR Distance(m): other
- Plug Type: EU plug
- Sensor Type: other
- Model Number: TI-ACT9537S/TI-ACT9537S
- Certification: CE
- Display screen: 4.3 inch LCD 480 (RGB) * 272 (QVGA) resolution
- TI-ACT9537W-5MP: Support 5MP TVI AHD 4MP CVI Camera Test
- TI-ACT9537S-1080P: Support 1080P TVI CVI AHD Camera Test
- Analog CVBS camera test: Support

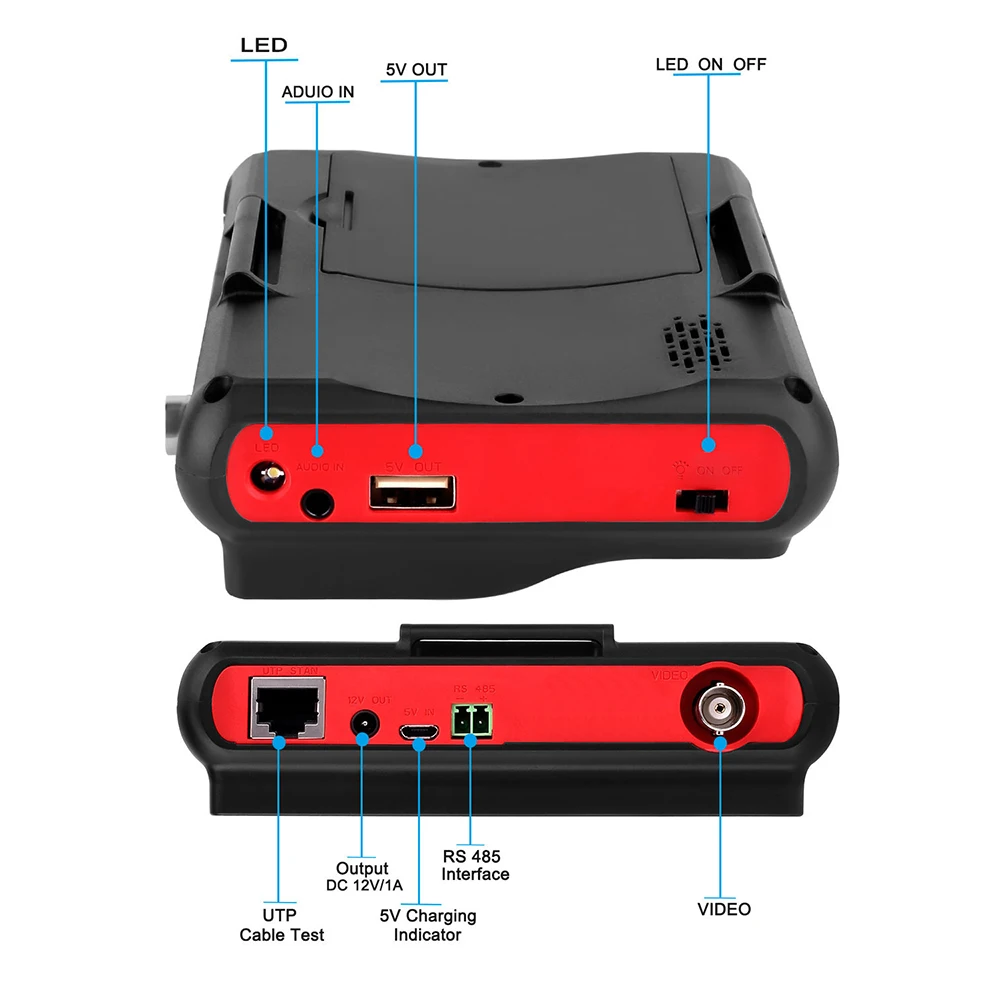

- DC 12V/1A output for camera: Support
- Audio testing: Support
- UPT cable test: Support
- LED Light: 1*35lm
- USB Power ouput: DC5V 1A
- PTZ Control: Support RS485
(1) HD AHD Camera test: Support 5MP 4MP 3MP 1080P 720P Camera Video test;
(2) HD TVI Camera test: Support 5MP 4MP 3MP 1080P 720P Camera Video test;
(3) HD CVI Camera test : Support 4MP 3MP 1080P 720P Camera Video test;
3.TI-ACT9537S
Support 1080P 720P AHD TVI CVI Analog CVBS Camera video test;
(1) HD AHD Camera test: Support 1080P 720P Camera Video test;
(2) HD TVI Camera test: Support 1080P 720P Camera Video test;
(3) HD CVI Camera test : Support 1080P 720P Camera Video test;

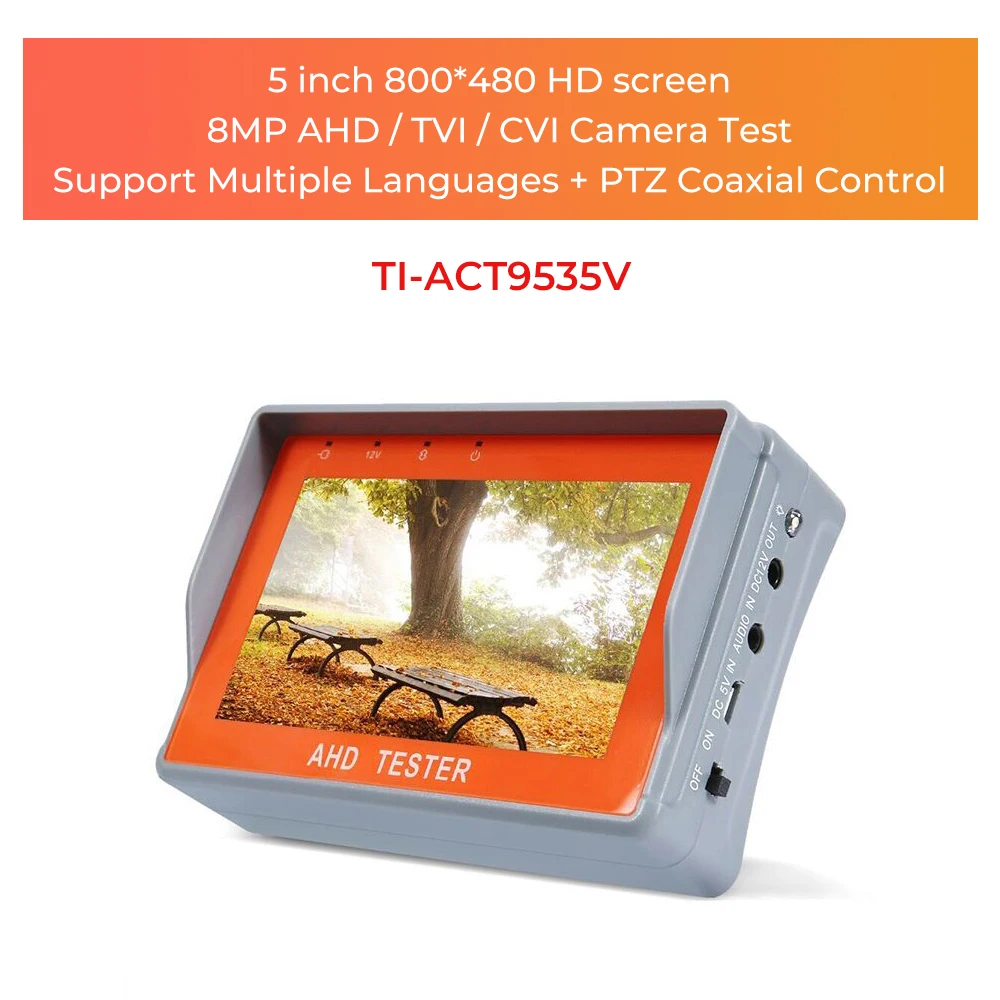

4.TI-ACT9535V-(IV5)
5 inch 800*480 HD screen
Support up to 8MP AHD 8MP TVI 8MP CVI camera test;
Support multi-language;
Support coaxial video control (control PTZ camera through UTC, but cannot call camera menu information)
5.TI-6300W

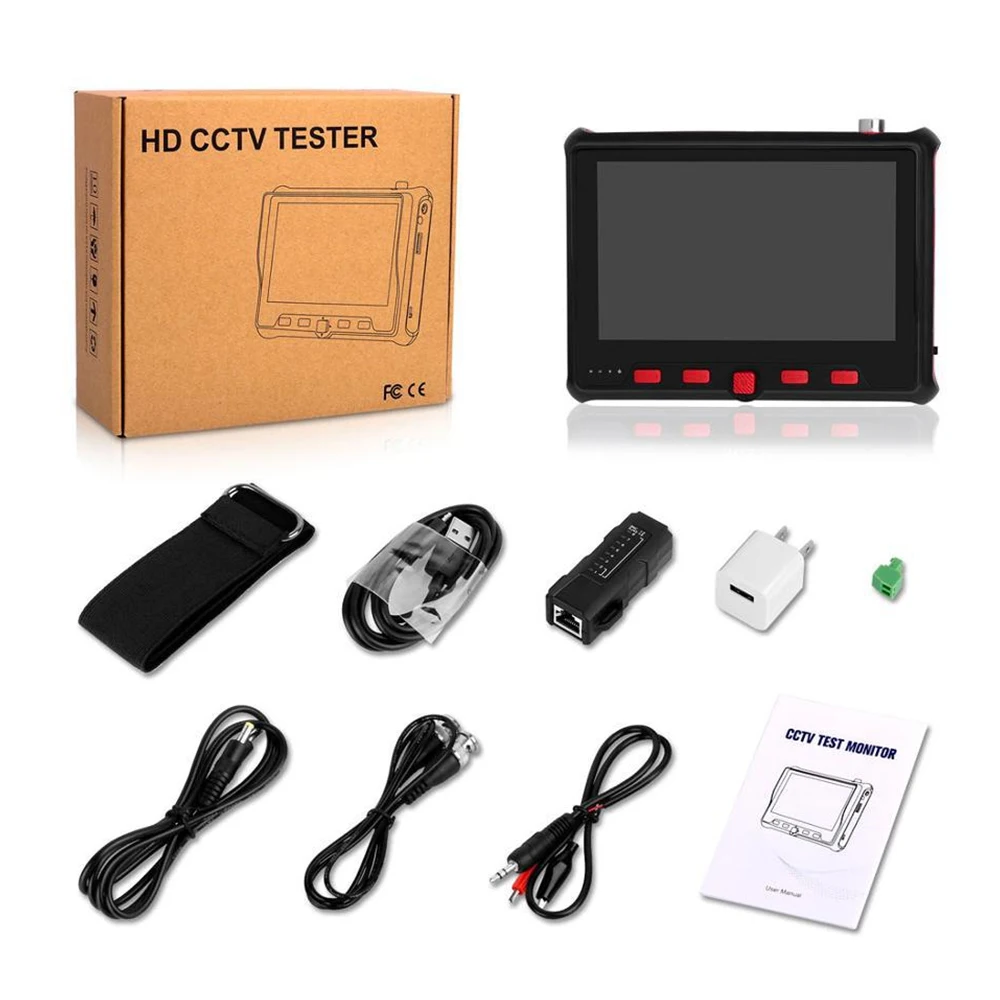

Package:
Key Feature:
● 4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color
● Support PAL/NTSC standard video signal. CVBS testing.
● PTZ controller
Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
● Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

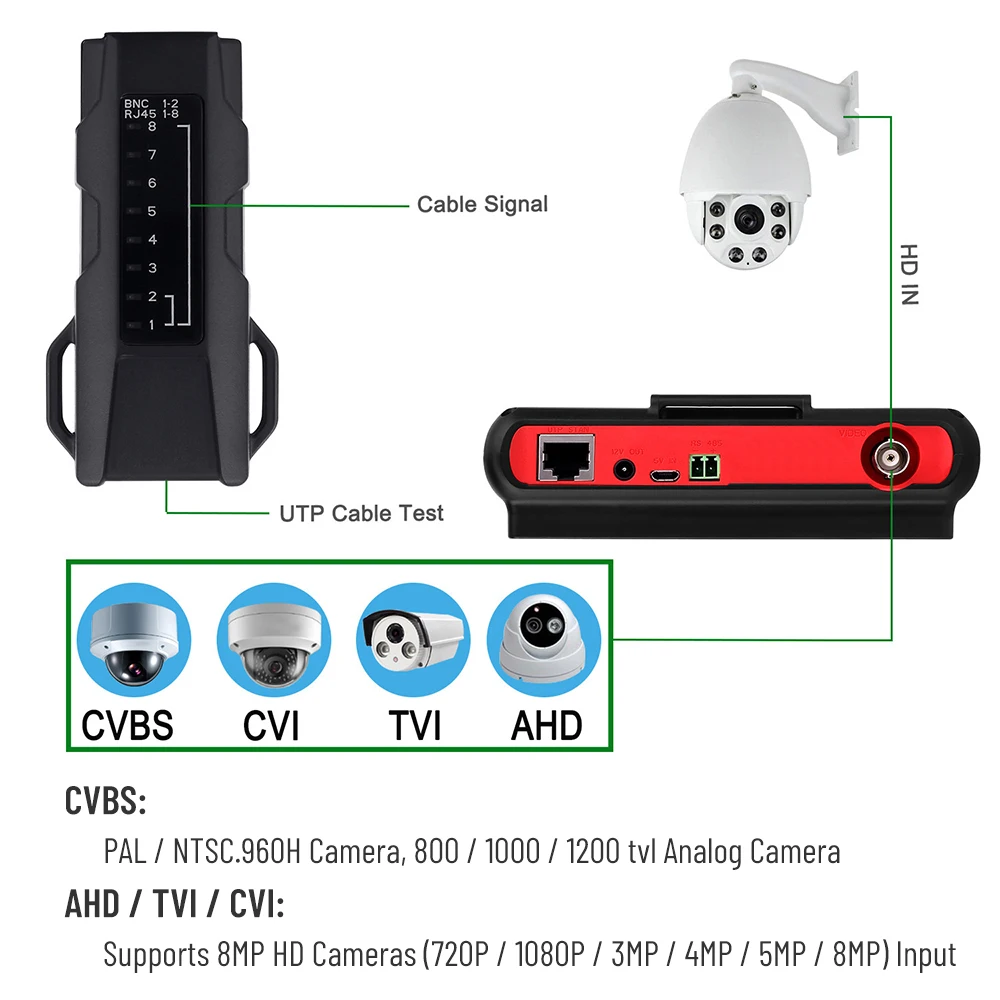

● UTP Network cable testing
Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box.
● TVI camera test
HD TVI video surveillance testing, When TVI signal input, the tester will display HD TVI camera image.
● CVI camera test
HD CVI video surveillance testing, When CVI signal input, the tester will display HD CVI camera image.
● AHD camera test
HD video surveillance testing. When AHD signal input, the tester will display the AHD camera image.
● LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
TI-6300W:
General
The new HD CCTV Test monitor support "4in1”(AHD/TVVCVCVBS)video format of up to 2MP~8MPresolution. It also supportPTZ control by RS485 and other special features suchas DC12V/USB/5V out put, audion test,UTP cable test,LED lighting etc.lt is designed to bring installer maximum conveniecy duringthe installation.

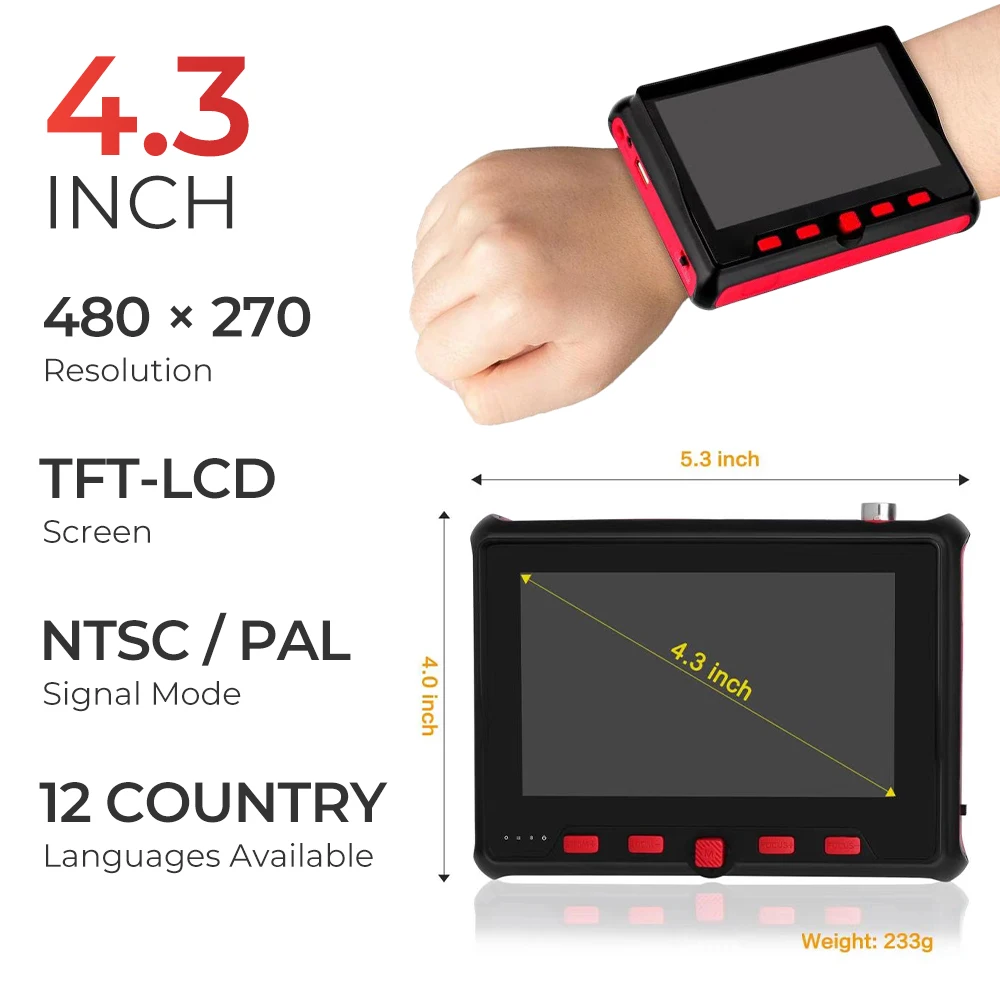

Display：4.3inch TFT- LCD, 480X272 resolution
Signal mode ：NTSC/PAL (Auto adapt)
PTZ Contoller：Support RS485,Compatible with protocols
PELCO- D/P, Baud Rate 1200~ 14400bps
UTP Cable Tester：Enhanced UTP cable, with indicator light, the test distance can reach 100- 150 meters
DC12V output：DC12V1A power Output

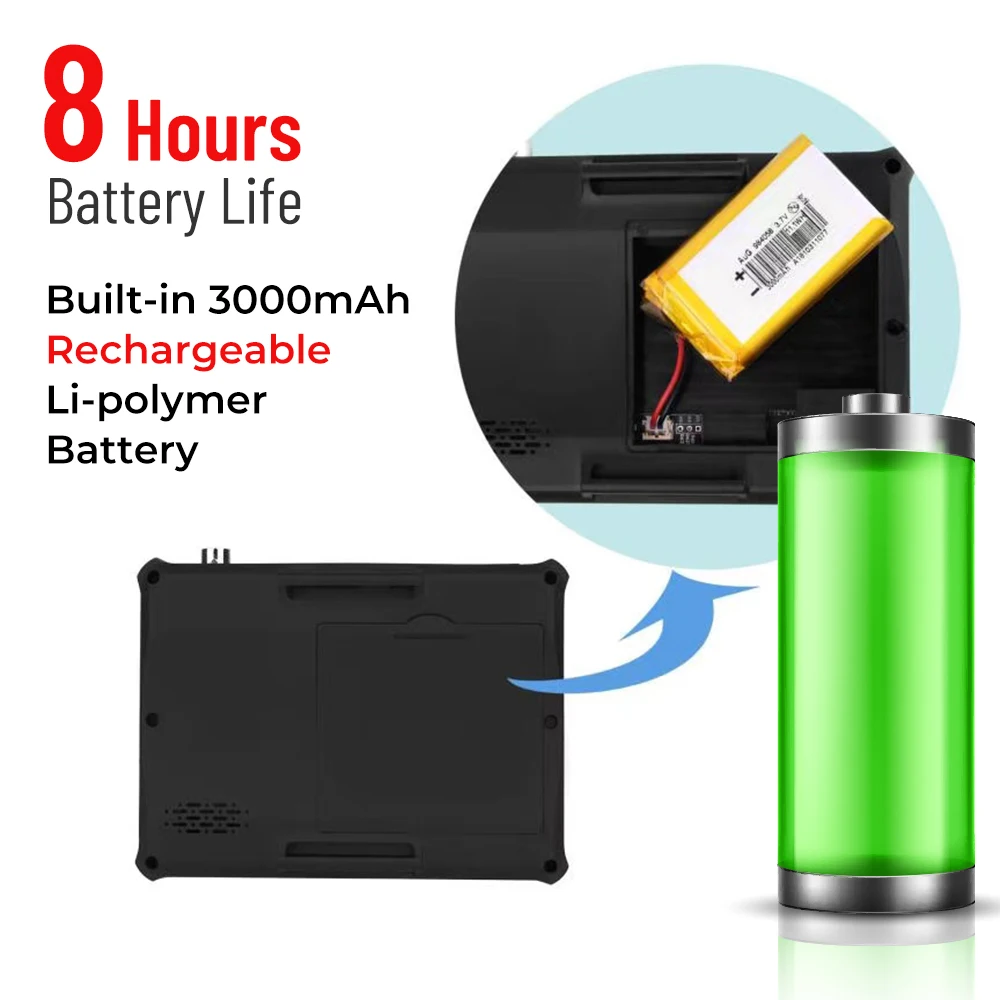

Battery：Built-in 3.7V 3000ma battery

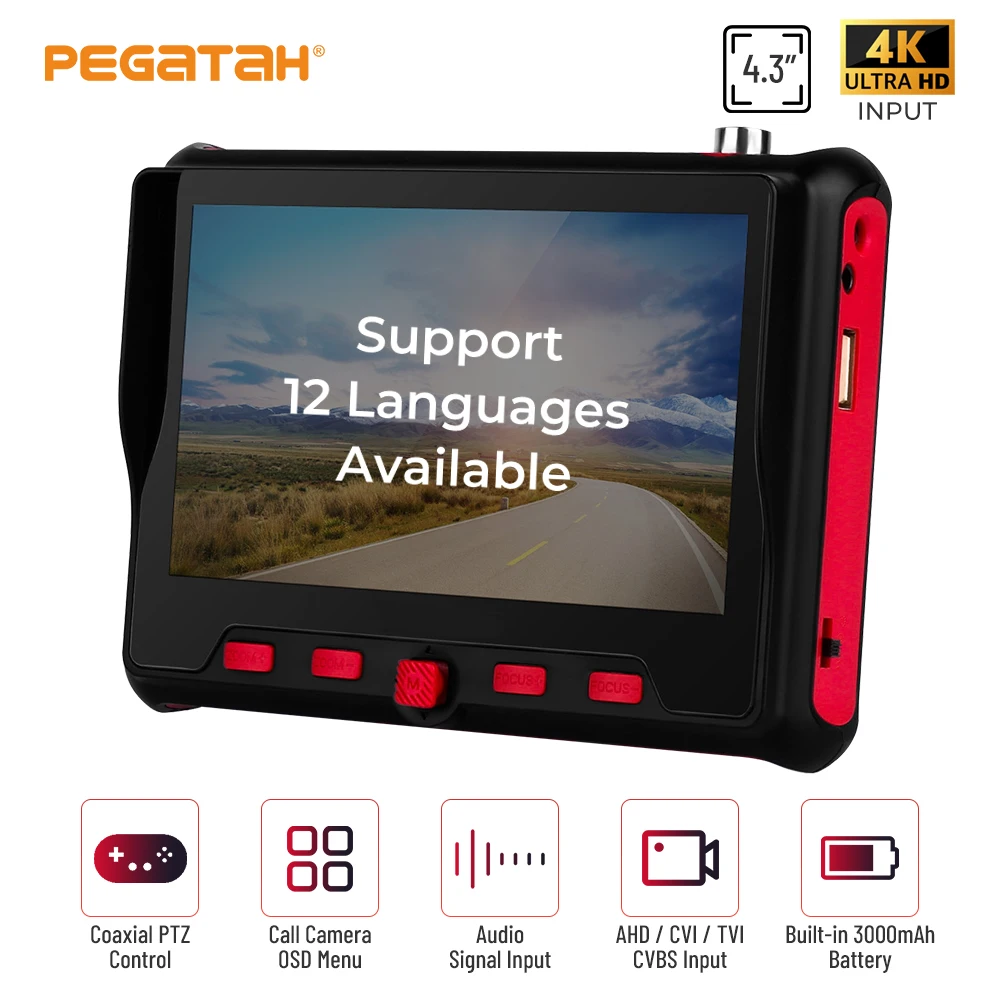

L anguage：12 Languages available
