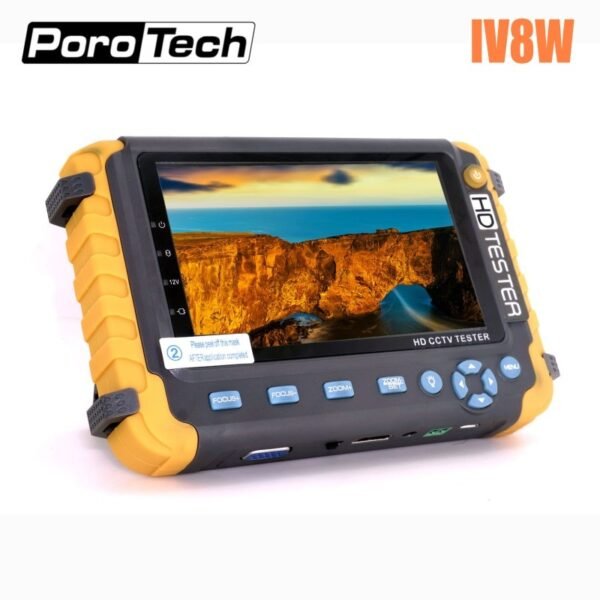

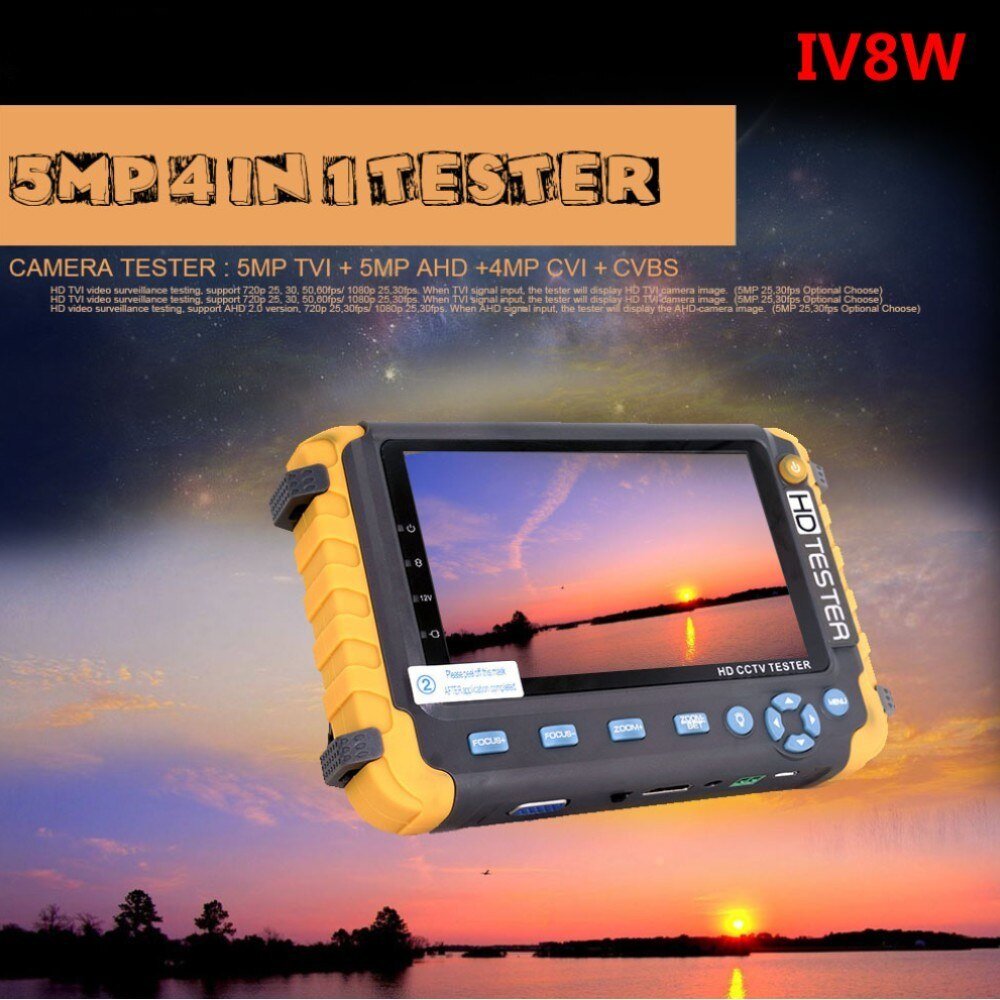

❤IV8W——5inch tester+8MP AHD+8MP CVI+8MP TVI(with HDMI and VGA)

❤ IV8C——5inch tester+8MP AHD+8MP CVI+8MP TVI(without HDMI and VGA)

❤ IV5——-5inch tester +8MP AHD+8MP CVI+8MP TVI(without HDMI and VGA)

Product Funtions

• Video signal testing

Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.

• PTZ controller

• DC12V 1A output power



IV8C CCTV TESTER

Utp Cable Test 5” Tft Lcd Screen Cctv Tester Built-in 18650 Battery IV8C 720P 1080P Hd Surveillance Camera Tester Cctv Test  ( not support VGA/HDMI input)

IV8C support  CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest:

(1) AHD Signal test: 8MP 1080P 720P;

(2) TVI Signal test:  8MP 1080P 720P;

Product overview:

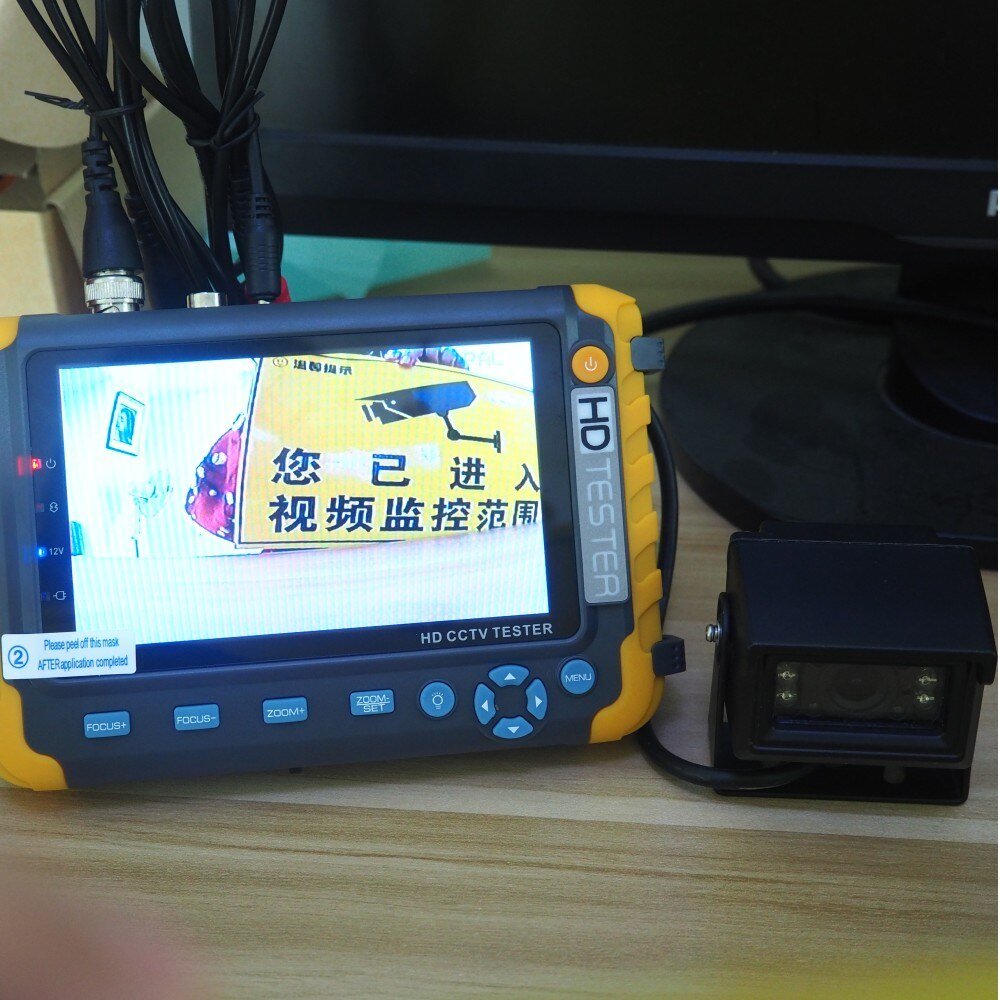

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, RS485 data searching, cable testing, LED lamp etc.

Main Features:

* Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,

*  Support PAL/NTSC standard video signal. CVBS testing.

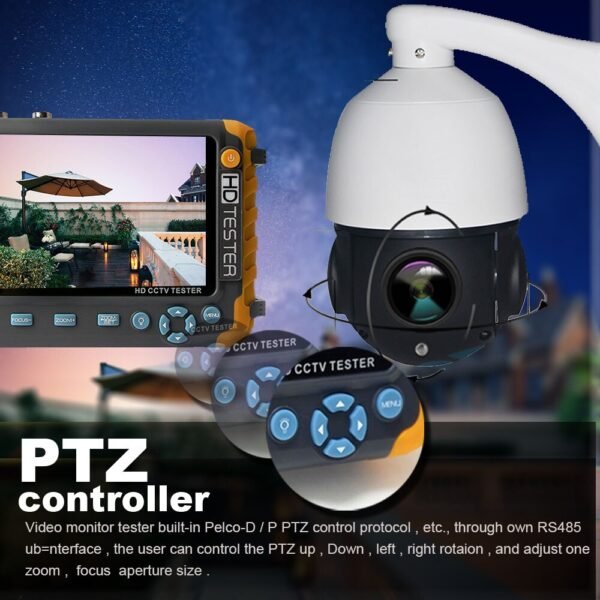

* PTZ controller

Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

* Image generator

Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

* DC12V 1A output power

Power the camera with DC12V (1A) power from the tester.

* Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

* Improvement cable test

UTP cable, telephone cable etc order and connectivity test, can save testing report

* TVI camera test

HD TVI video surveillance testing, support 8MP. When TVI signal input, the tester will display HD TVI camera image.

* CVI camera test

HD CVI video surveillance testing, support 8MP. When CVI signal input, the tester will display HD CVI camera image.

* AHD camera test

HD video surveillance testing, support 8MP. When AHD signal input, the tester will display the AHD camera image.

* LED lamp

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.

Specifications:

Model	IV8C
LCD screen	5.0 inch TFT-LCD, 800(RGB)x 480 resolution
Video test	NTSC/PAL (Auto adapt)
LCD adjustment	Brightness, Contrast, Saturation adjustable
Video IN/OUT	1 channel BNC Input & 1 channel BNC Output
VGA/HDMI input	NOT Support
PTZ Controller	Support RS485
PTZ Protocol	Compatible with protocols PELCO-D/P,
Baud Rate	Baud Rate: 600,1200, 2400, 4800, 9600, 14400bps
Color bar generator	Support both PAL / NTSC format’s standard color bar output
	(Red, Green, Blue, White, Black, Grey) and testing image output
UTP Cable Test	Display UTP cable connection status , cable type and
	the sequence of wires as well as read the number of the test box.
DC12V power output	Output DC12V1A power for camera
Audio input test	1 channel audio signal input
Coaxial HD test
TVI test	1 channel TVI input(BNC interface),
	support 8MP
CVI Test	1 channel TVI input(BNC interface),
	support 8MP
AHD Test	1 channel AHD input (BNC interface),
	support AHD 2.0 version, 8MP
POWER
Power Adapter	DC 5V(1.5A)
Battery	Built-in 18650 2600mA battery X 2,
	After charging 3-4 hour, working time lasts 11 hours
General
Language	English and Chinese optional
Working Humidity	30%-90%
Dimension	194mm x 112mm x 48mm / 540g

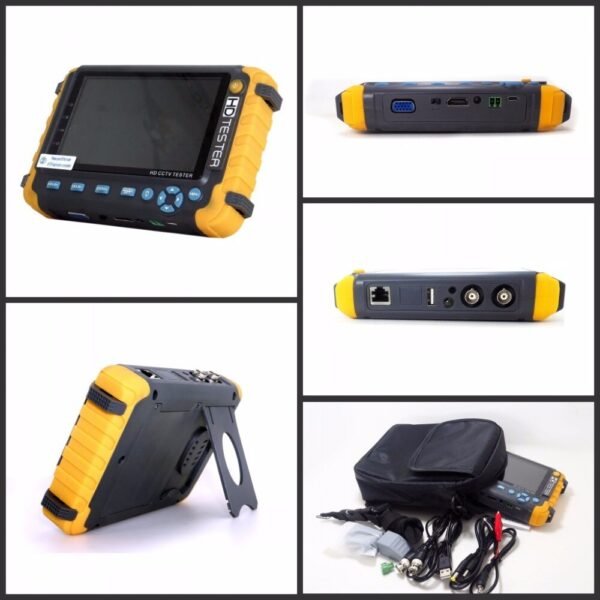

Packing list:

•  HD coaxial tester

• Adapter DC5V 1A(with USB cable)

• International Standard 18650 2600ma battery

• BNC cable

• RS485 connector

• Power output conversion cable

• Audio cable

• Lanyard

• Tool bag

• Instruction Manual
