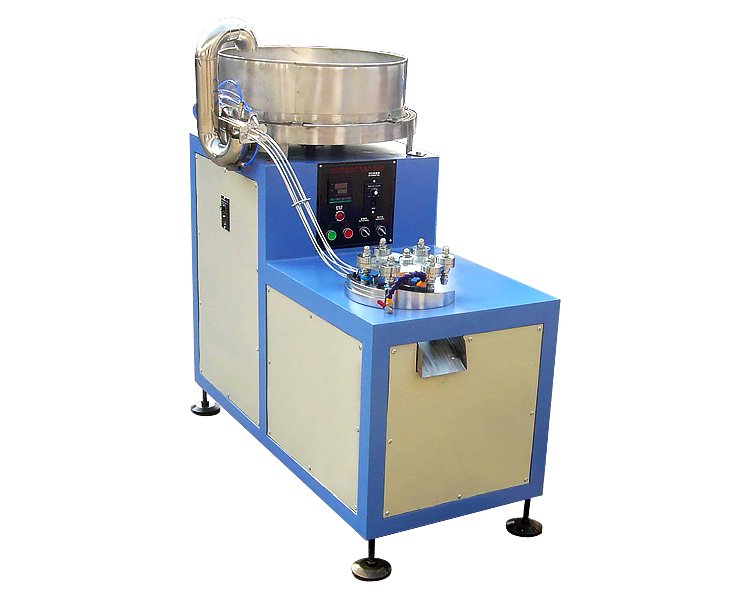

Cap Slitting Machine
Brief Introduction
The cap slitting machine is designed for cutting the tamper evidence band of the cap. The cap slitter is completes automatically the whole working procedure: loading the caps in order, feeding lids into the slitting station, cutting the caps, and discharge the silted caps.
Cap Samples Produced by MG-3 Machine
The Cap before slitting
The Cap after slitting
Technical Parameter
| Type | MG-3 |
|---|---|
| Min.cap diameter | 25mm |
| Max.cap diameter | 60mm |
| Min.cap height | 15mm |
| Max.cap height | 25mm |
| Output each hour | 12000-25000 caps/hour |
| Power | 1kw |
| Contour dimension | 1300x700x1500mm |
| Machine weight | 380kg |
| Compressed air consumption | 600Ni/min |
Ywashun machinery, the Professional cap slitting & Cap cutting machine supplier in China.
Note: cap slitting machine is also known as cap scoring machine.
