SS Series Blow Moulding machine for large bottle

Ywashun machinerys’ SS Series automatic linear PET blow moulding machines was designed with two principles in mind. One, to lower the running cost for the bottle producer and two provide easy operation. The MG-SS Series PET blow moulding machines lowers your production costs so you can achieve maximum profits in your competitive bottling market, the blower reduces your energy expenses by up to 30% at a maximum output of 1500 bottle per cavity per hour. Thanks to our GM Mr. Cai Yuansen who developed the special mechanical designs which maximizes the performance of the machine.

*Precise controller

MG-SS series PET blow moulding machines adopts the famous Delta controller system. It integrates a self-diagnosis program, all warning information is shown through the friendly touch interface featuring an alarm system. Also, the controller shows the actual blowing speed during production.

*Stretching system

A double cylinder stretching unit is standard equipment ,  It provided the fastest possible stretching speed, and the longest possible stretching stroke. Linear motion guides provide ultra smooth movement and the lowest possible friction coefficient.

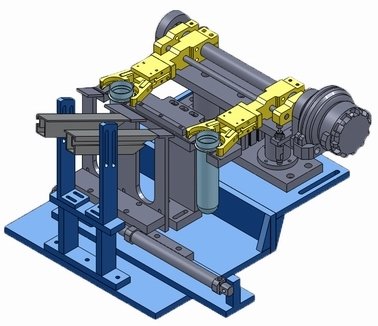

1. Special loading system carries the preform automatically with less moving parts.

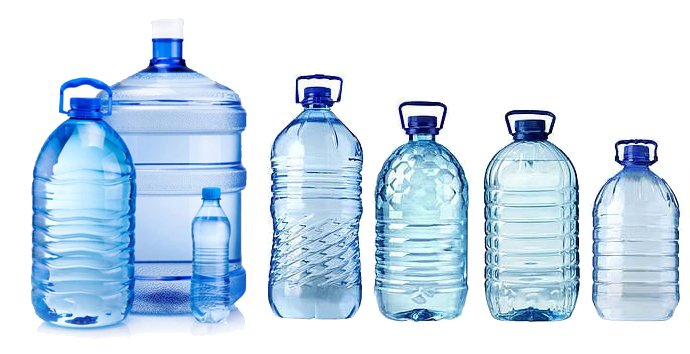

2. Suitable to produce 5L ~20L Standard neck PET container
3. Advanced PLC control system with a use-friendly control panel
4. Built-in memory of the PLC saves all the sets of numbers required to produce different size bottles.
5. Multiple Reliable sensor systems monitors the machine’s automatic function
6. Equipped with special designed air storage unit

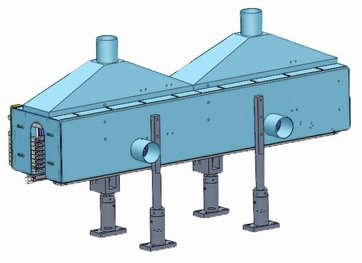

7. Powerful heating unit with precision controller and convenient adjusting mechanism.
8. Cooling system that provides a perfect cooling result
9. Compact design that saves space
10. Simple installation & start up operation
11. minimal transfer space for the air distribution system.

Ywashun machinery, the Professional PET Blow Moulding Machine supplier in China.

Note: PET stretch blow molding machine is also known as Reheat stretch blow molding machines, Stretch blow molding machines, bottle blowing machine, blowing machines and PET blow molding machine.
